cnp same quality no-leaking vertical multistage pump supplier

Pump Description:

Product Detail

Product Tags

Product Description

CHL/CHLF is a kind of multi-functional products.It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CHL type is applicable to conveying non-corrosive liquid, while CHLF is suitable for slightly corrosive liquid.

cnp same quality chl chlf horizontal stainless steel multistage centrifugal pump and water pumps

General Data

Application:
CHL,CHLK and CHLF(T) type pump are mainly used in industrial field:

* Air conditioner system

* Aquaculture

* Cooling system

* Environmental application

* Water treatment processing (water purification)

* Fertilization / Measuring system

*Other special applications

Application medium:
*Thin and clean non-flammable and non-explosive liquid without solid granules and fibers.
*Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
*When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.
*Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.

Motor:
* Full -enclosed air cooled type motor 2-pole
*Protection class: IP55
*Insulation class: F
*Standard voltage, 50Hz: 1×220-240V
3×220-240V/380-415V
*Standard voltage, 60Hz: 1×220-240V
3-220-240V/380-415V
*Single phase motor(max): 2.4kw
Operation condition:
Liquid temperature:
Normal temperature type: -15 ºC~+70 ºC
Hot water type: -15 ºC~+110 ºC
Ambient temperature: up to +40 ºC
Max.operation pressure: 10 bar
Max.inlet pressure is limited by max.operation pressure.

Technical Data

Model	Head (m)	Flow Rate (m3/h)	Motor power (KW))	Motor Speed (r/min))
CHL4-20	15	4	0.37	2900
CHL4-30	23.5	4	0.55	2900
CHL4-40	31	4	0.75	2900

cnp same quality chl chlf horizontal stainless steel multistage centrifugal pump and water pumps

Installation Drawing

installation diagram 4.png

Motor	Type	Size(mm)					Weight (kg)
Motor	Type	L1	L2	L3	D	H	Weight (kg)
Three phase or single phase	CHLF(T)4-20	329	105	102	145	215/230	15
	CHLF(T)4-30	356	132	129	145	215/230	15
	CHLF(T)4-40	416	162	156	170	225/245	17

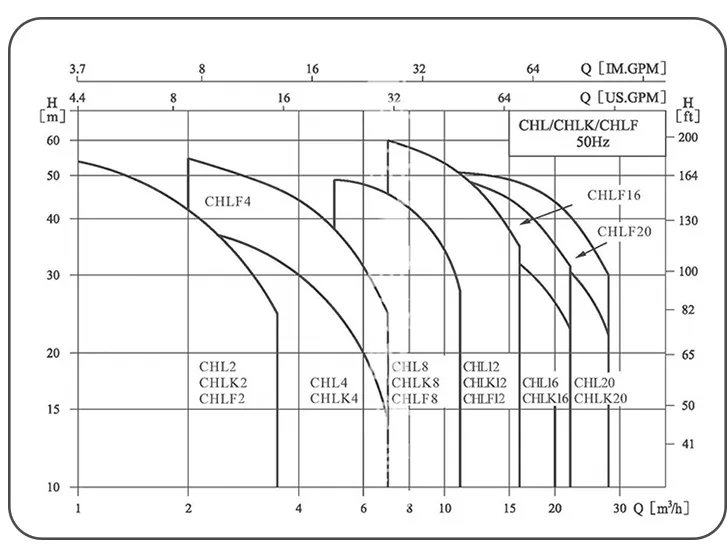

Performance Curve

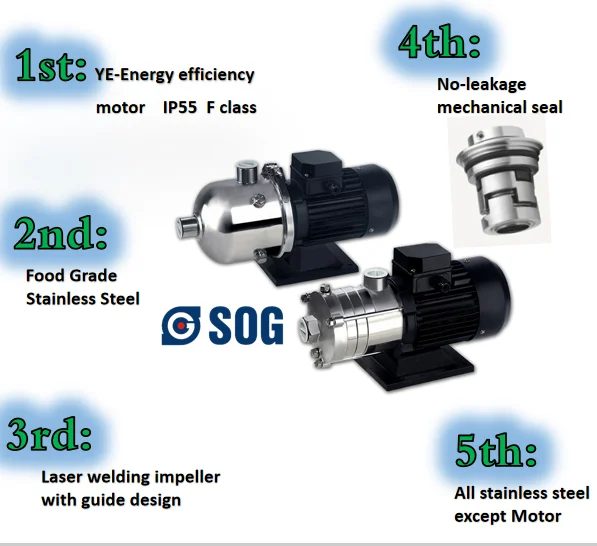

Our Advantage:

CHL structure.png

Curve conditions:
Following conditions are suitable for the performance curves shown above:
*All curves are based on the measured values of 50Hz: constant motor speed 3500r/min;
*Curves tolerance in conformity with CE;
*Measurement is done with 20 ºC are-free water, kinematic viscosity of 1mm ² /sec;
*The operation of pump shall refer to the performance region described by the thickened curve to prevent overheating due to too small flow rate or overload of motor due to too large flow rate.

.jpg

Company Information

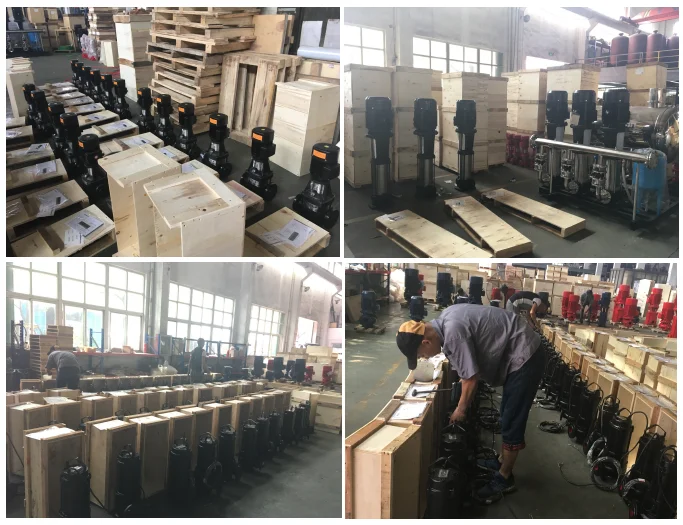

Packing details

PACKING 8.png

FAQ

Q: What kind of company you are?

A: Shanghai SOG Pump Company is a professional pump manufacturer ,minaly applied in high raise building ,industry,waste water treatment, seawater RO system etc. After 13 years of development and research,we have formed a complete system of pump design, selection, application, manufacture, marketing and maintenance.

We have passed ISO, SGS, MA certificate. Our customers are from over 30 oversea countries. Hope to coorperate with the worldwide friends.
Q: 1. How to get our quotation in time, pls answer following questions:
1)What liquid do you transfer ? Oil, Water, Seawater or Corrosive Chemical liquid,with solid particle or not, and so on~
2) What’s the flow or capacity (m3/h, L/m)?
3) What’s the discharge head (m, feet, Mpa, bar )
If you do not have any request, we will do as our normal standard.
Good quality with competitive pirce
ISO9001: 2008, SGS certificate

Q: What are your payment terms?
A: T/T, L/C at sight, D/P, D/A or as customer required

Q: How about the warranty?
A: One year warranty for pumps expect the easy-wearing parts,it depends on pump working condition details.

Q: What is the delivery time?
A: 7-30 days according to pump materials and quantities.

Q: Can you do OEM brand?
A: Yes, Welcome.
